Whyte Multi-Switch 5x9 Satellite & Terrestrial (20dB) - Special Order Only

Whyte 5x9 Satellite & Terrestrial Multiswitch (20dB)

Special Order Only - Please contact us for information.

Top Quality 5x9 Satellite & Terrestrial Multiswitch

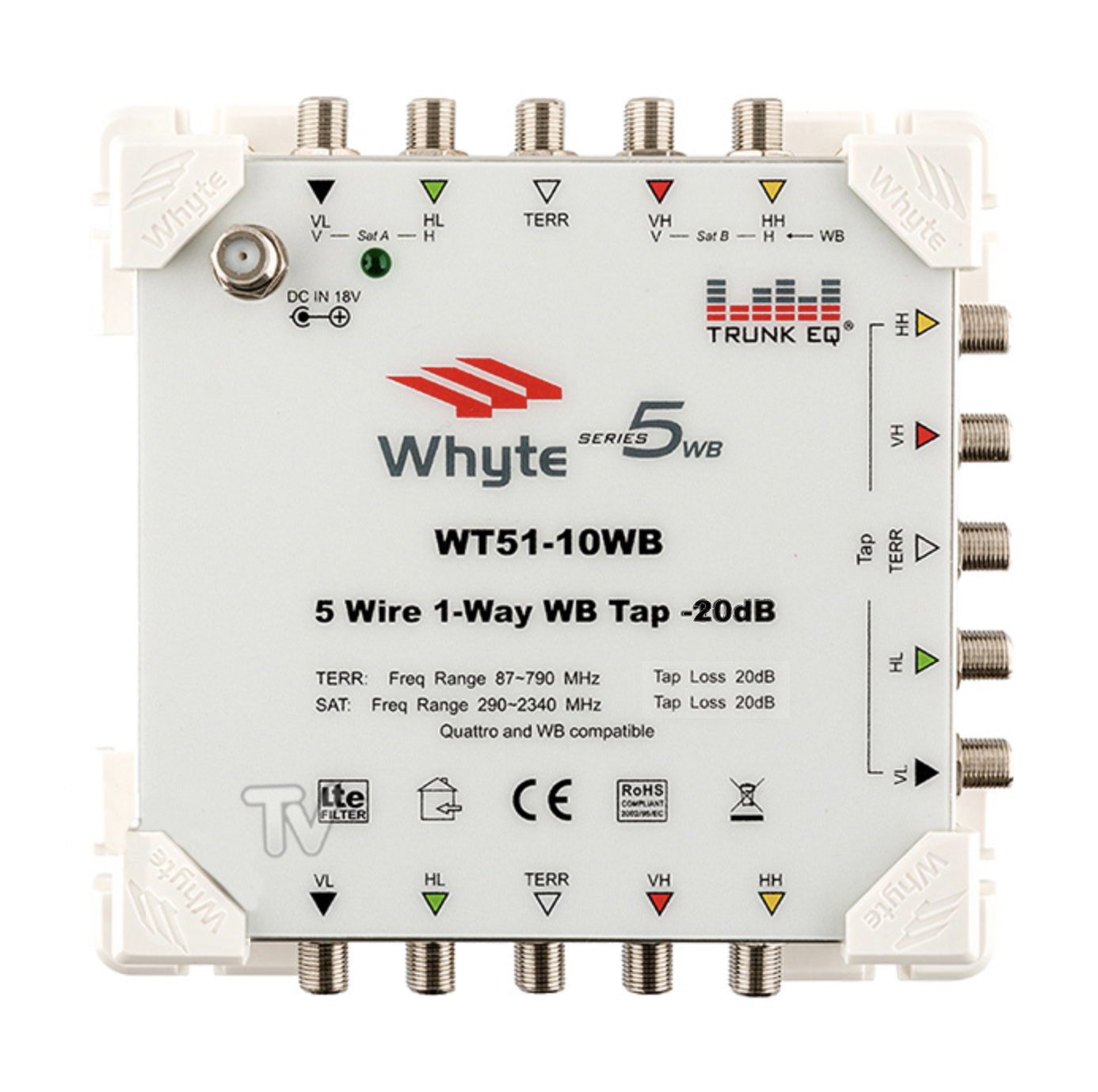

Model: Whyte Series 5 WB WT51-10WB

Frequency SAT: 290-2340MHz

TERR: 87-790MHz

Inputs (F-Type Connector): 4 SAT + 1

TERR Outputs (F-Type Connector) 2× 4 SAT 2× 1 TERR

DC Input (Injection of DC applied to): All SAT Trunk and Tap

DC Pass Trunk To Tap SAT: All

TERR: No

DC Pass Trunk to Trunk SAT: Yes

TERR: No

Trunk Through Loss SAT: 2dB ±1TERR: 2dB ±1 Tap Loss SAT: 20dB

TERR: 20dB

Fixed Slope Tap: YES

Trunk EQ: YES

Isolation: >30dB

Max Current Pass (Trunk/Trunk Trunk/Tap): 2A

Power Indication: LED

Dimensions: 156 x 150 x 43mm

Weight: 360g

This version of multiswitch can work with quads as well as quatro LNBs

Best results on terrestrial are achieved when using a grouped (e.g. Group B) rather than wide band UHF aerials

On terrestrial, it may be necessary to use a launch amplifier to boost signal (This is true for 16 & 32 output units)

Used in conjunction with a Quatro or quad LNB and a 80cm dish to distribute the satellite and sometimes Terrestrial TV signal to a number a number of TV points

Capable of giving good results on both Satellite and Terrestrial output

Used extensively in Hotels Apartment blocks Retirement villages

Used in conjunction with a quad or quattro LNB (normally mounted on an 80cm dish) whose 4 outputs are broken into Vertical (High & Low) Horizontal (High & Low)

Multiswitch Inputs Satellite: 4 from satellite - from either a quad or Quatro LNB

Terrestrial: Single feed covering full VHF / UHF spectrum

Multiswitch Outputs Outputs: 9 outputs to satellite receivers

At the TV Point use a faceplate to split the signal into satellite and terrestrial

This unit with a single 80cm satellite dish can feed a small apartment block

Works well with both satellite & terrestrial signals

Can be very cost efficient on small sized commercial jobs

This multiswitch is part of Whyte's top of the range multiswitches

Features Trunk EQ Inbuilt LTE filter LED power indicator

Colour coded inputs and outputs

Tap outputs on top of unit for easy access

Auxiliary 18V Input injects power to SAT lines

This industry first enables longer cascades to be created for Quattro or Wideband IRS distribution systems

A Sky dish with an Octo LNB is more practical for small jobs requiring less than 8 satellite feeds and no terrestrial signal

Alignment and setup can be very complicated and frustrating - possibly not for the DIYer

Need to plan properly and use high quality cable CT100 or CT165 if it is to work correctly through a large scheme

Maximum limit of this unit is 9 outputs or 4 Sky+HD receivers, which often is not sufficient Will not support Sky Q.
