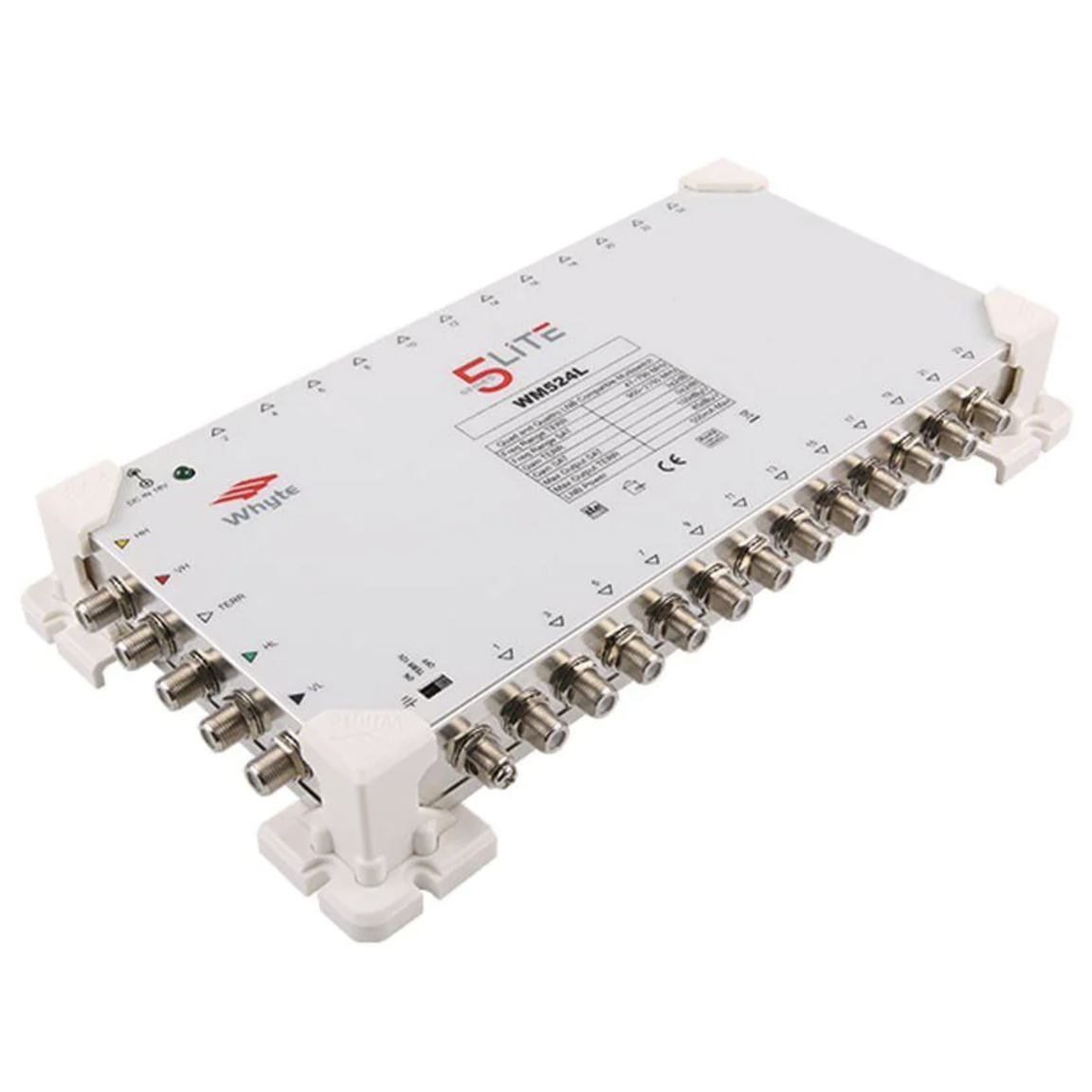

Whyte Multi-Switch 5x24 Satellite & Terrestrial - Special Order Only

5x24 Multiswitch 5x24 Satellite & Terrestrial

Special Order Only - Please contact us for information.

Brand: Whyte

Model: WM524L

Colour coded inputs

Industry leading performance at a competitive price

LED power Indicator

Includes separate power supply unit with F-Type DC lead

Gain SAT: 0dB / TERR: 3dB

Switchable 12V supply to power mast head amplifier

High quality standalone multiswitch

Adequate clearance to route cables under multiswitch

In-built high-rejection LTE 4G Filter

CC 8543709099 0.70kg Y

This version of multiswtich can work with quads as well as quatro LNBs

Best results on terrestrial are achieved when using a grouped (e.g. Group B) rather than wide band UHF aerials

On terrestrial, it may be necessary to use a launch amplifier to boost signal (This is true for 16 & 32 output units)

Used in conjunction with a Quad or Quatro LNB and a 80cm dish to distribute the satellite and sometimes terrestrial TV signal to a number a number of TV points

Capable of giving good results on both satellite and terrestrial output

Used almost exclusively by professional satellite installers

Used extensively in Small & medium hotels Apartment blocks Retirement villages Nursing homes

Used in conjunction with a quad or quatro LNB (normally mounted on an 80cm dish) who's 4 outputs are broken into Vertical (High & Low) Horizontal (High & Low)

Multiswitch Inputs: Satellite: 8 from satellite - it can support 2x LNBs

Terrestrial: Single feed covering full VHF / UHF spectrum

Multiswitch Range: Outputs: 8, 16 or 32 outputs to satellite receivers

At the TV Point use a faceplate to split the signal into satellite and terrestrial

This unit provides a very simple, effective, neat and cost efficient solution for supplying satellite & terrestrial TV to up to 24 TVs from a single unit

This unit with a single 80cm satellite dish can feed a large apartment block

Works well with both satellite and terrestrial signals

Can be very cost efficient on medium sized commercial jobs

This multiswitch is part of Whyte's top of the range multiswitches

These are not cheap and are not suitable for small jobs

Alignment and setup can be very complicated and frustrating - this unit is not for the DIYer

Need to plan properly and use high quality cable CT100 or CT165 if it is to work correctly through a large scheme
