Whyte Multi-Switch 5x16 Satellite & Terrestrial - Special Order Only

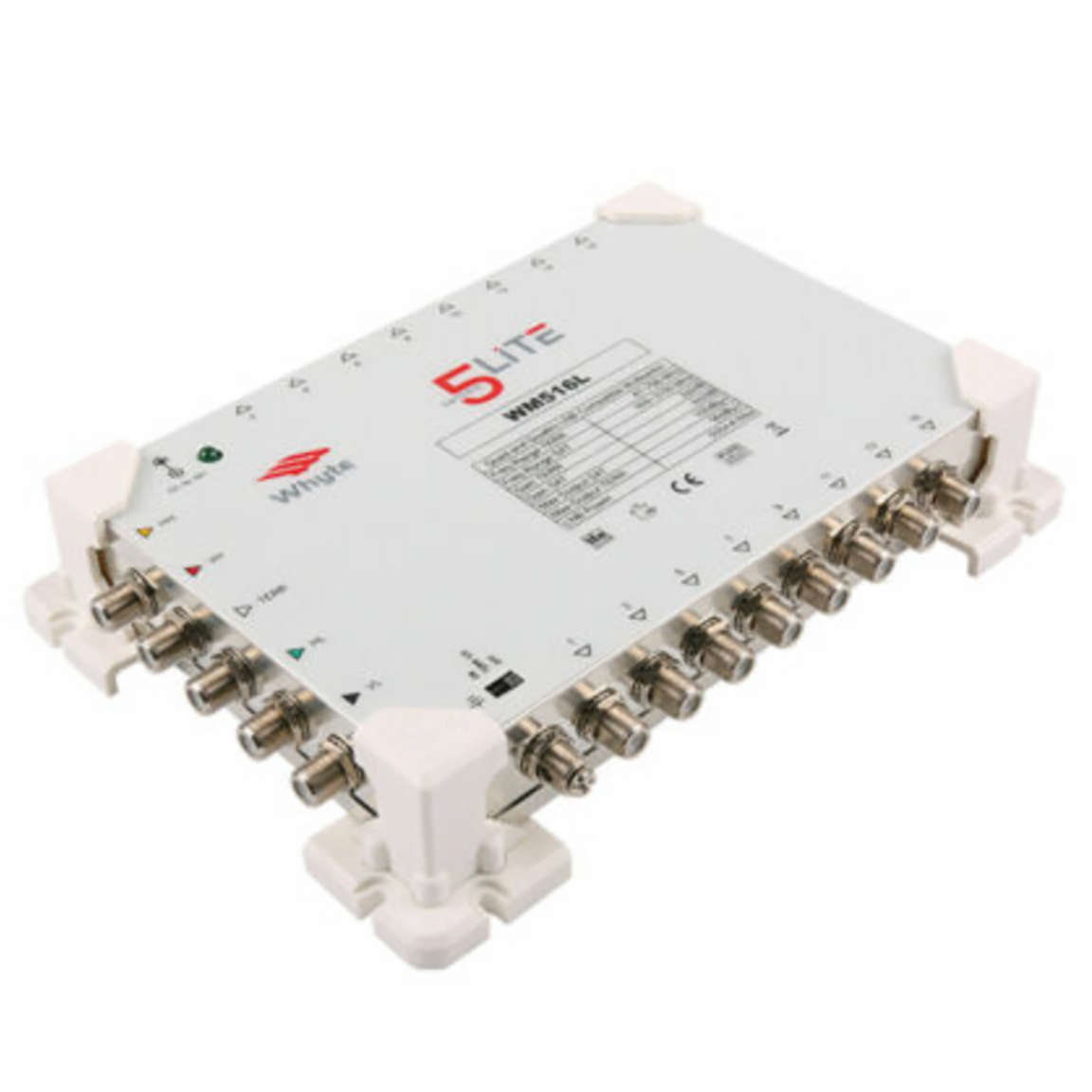

Whyte 5x16 Satellite & Terrestrial Multiswitch

Special Order Only - Please contact us for information.

Model: Whyte WM516L

Frequency: Satellite: 950-2150MHz, Terrestrial 47-790MHz

INPUTS (F-Type Connector): 4 SAT + 1 TERR

OUTPUTS (F-Type Connector): 16 Tap outputs

Gain: SAT: 0+-2dB | TERR:3+-2dB TERR

12V DC Supply 100mA

Isolation: Cross Polar: ≥25dB, Rejection: ≥20dB, Tap-Tap Sat: ≥25dB, Tap-Tap Terr: ≥23dB, Trunk – Trunk: ≥28dB

Output Level: SAT (IMA3 35db): 100dBμv, TERR (IMA360dB): 90dBμV

Switchable Voltage: 15±0.8V

Trunk Max Current: 2A

LNB Power Max: 15+-0.8V

Switching Commands: 13V-18V, 13V22k-18V22K

Current Consumption: 100mA max

Colour coded inputs Includes 12v power supply

Integrated LTE 4G filter Connector type: F-type

Connectors CC 8543709099 0.60kg Y

This version of multiswitch can work with quads as well as quatro LNBs

Best results on terrestrial are achieved when using a grouped (e.g. Group B) rather than wide band UHF aerials

On terrestrial, it may be necessary to use a launch amplifier to boost signal (This is true for 16 & 32 output units)

Used in conjunction with a Quad or Quatro LNB and a 80cm dish to distribute the satellite and sometimes Terrestrial TV signal to a number a number of TV points

Capable of giving good results on both Satellite and Terrestrial output.

Used extensively in Apartment blocks Small Hotels B&Bs

Used in conjunction with a quad or quatro LNB (normally mounted on an 80cm dish) whose 4 outputs are broken into Vertical (High & Low) Horizontal (High & Low)

Multiswitch Inputs: Satellite: 4 from satellite - from either a quad or Quatro LNB

Terrestrial: Single feed covering full VHF / UHF spectrum

Multiswitch Outputs: Outputs: 16 outputs to satellite receivers

At the TV Point use a faceplate to split the signal into satellite and terrestrial

This unit with a single 80cm satellite dish can feed a medium sized apartment block

Works well with both satellite and terrestrial

Can be very cost efficient on medium sized commercial jobs

Part of Whyte's top of the range multiswitch series

A Sky dish with an Octo LNB is more practical for small jobs requiring less than 8 satellite feeds and no terrestrial signal

Alignment and setup can be quite complicated and frustrating - this unit is not for the DIYer

Need to plan properly and use high quality cable CT100 or CT165 if it is to work correctly through a large scheme

Maximum limit of this unit is 16 outputs or 8 Sky+HD receivers, which often is not sufficient eg. for a block with 9 apartments each which require 2 satellite feeds - would require 18 outputs.

Will not support Sky Q.
