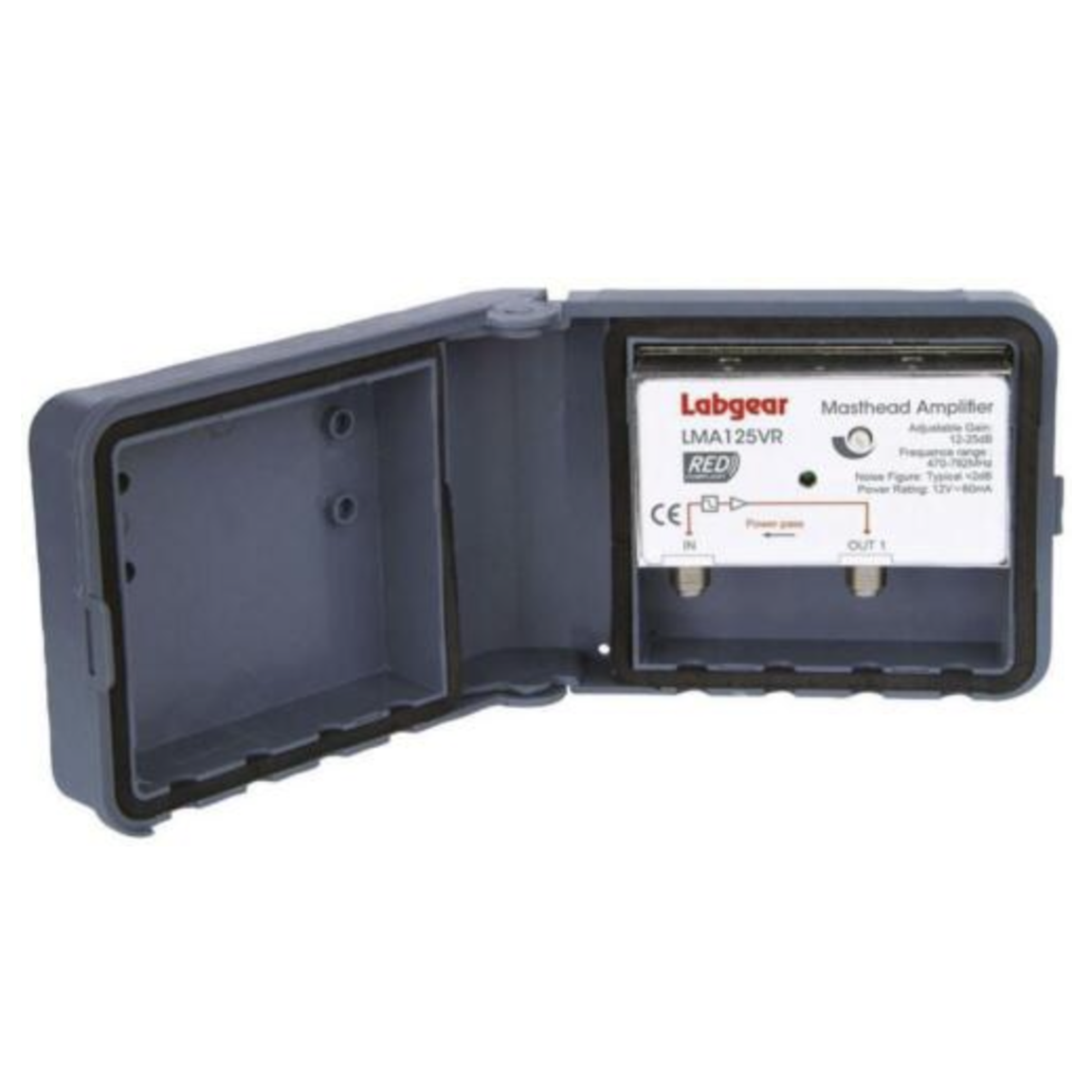

Masthead Amplifier UHF Variable Gain Single Output

Variable Gain UHF Masthead Amplifier

Labgear Variable Gain UHF Masthead Amplifier

Gain: 10-25dB

Signal Range: 470-862MHz

Connection type: F Connectors

Input: 1

Output: 1

Power Feed: 12V ~ 60mA Supply

For Use: Indoor / Outdoor

Digital Compatible: Yes

Signal Insertion Loss: < 0.5dB

Comes With Integrated Cable Tie For Attaching to a TV Aerial Pole

CC 8543703000 0.19kg Y

Note: Always used as a set in conjunction with a Power Unit (Purchase separately)

This unit is used in conjunction with a Power Unit and a UHF TV Aerial to boost TV signal in poor reception areas

The level of gain can be varied between 10 & 25dB

The filter screens inputs of <470 MHz to prevent interference from CB, private mobile radio, Tetra etc..

Can achieve a 25dB gain which can transform a hazy picture into a clear picture

The fact the gain is adjustable makes it ideal for marginal locations - gain can be set to optimum level

The fact it is screened means it can boost the signal without dragging in excess interference - from CB, private mobile radio, Tetra etc..

Reliable robust unit Low cost unit

Can be used with power passing splitters to feed a number of rooms

Generally more effective than a using a distribution system at improving signal quality

Can be used in conjunction with a power passing splitter to feed TV signal to several TVs

More expensive than fixed gain mast head amplifiers

Maximum gain is 25dB - which is lower than with the high gain masthead amplifiers
