Masthead Amplifier UHF Medium Gain Single Output

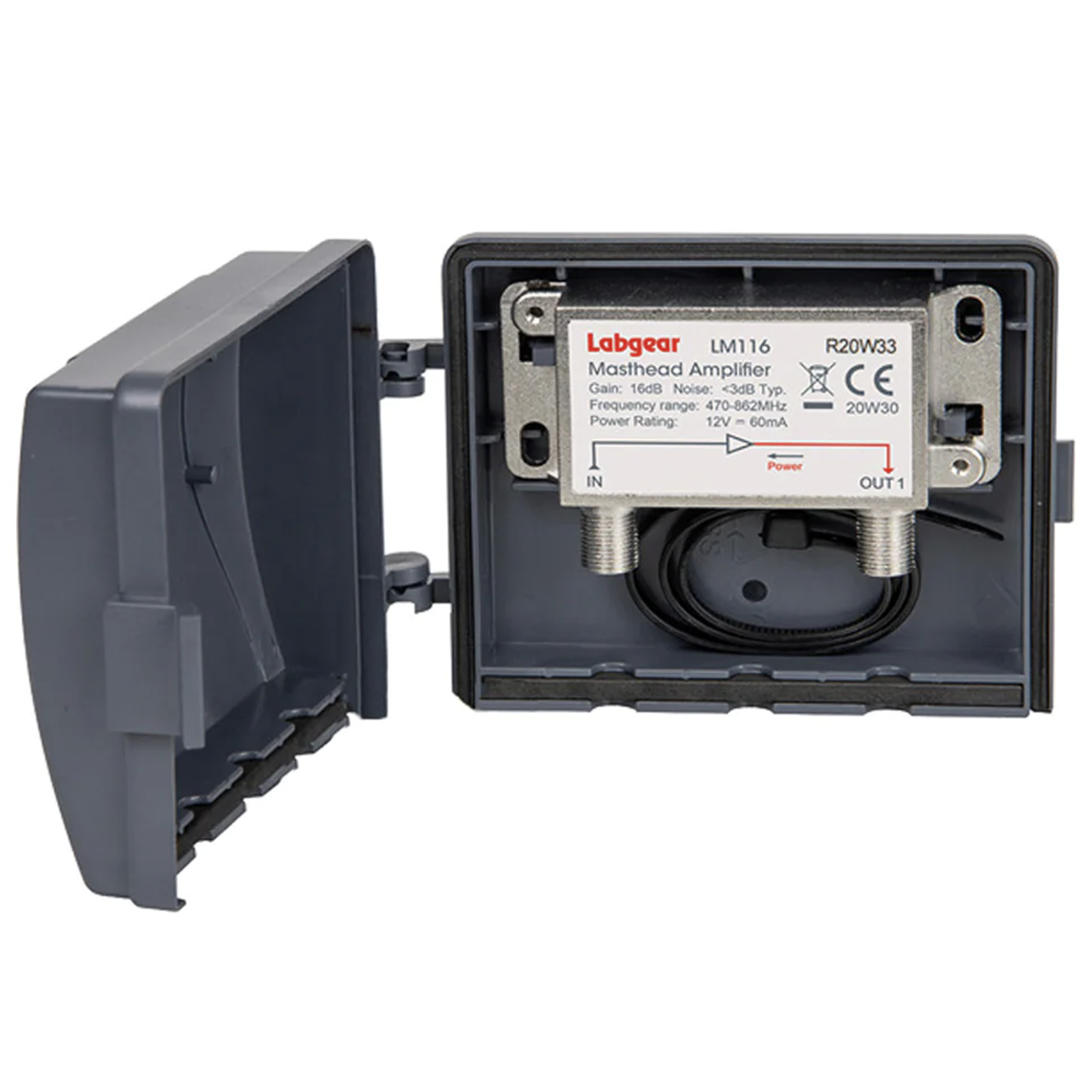

Labgear UHF Masthead Amplifier Medium Gain

UHF Masthead Amplifier

1 Input

1 Output

Interference Noise Level: < 3dB

Frequency Range: 470-862MHz

Line-Powered Weatherproof Housing

Low Noise Freeview & Saorview

Compatible Class 0 RED Compliant

Power Requirement: max. 12V ~ 60mA

CC 8529108090 0.25kg Y

Note: Always used as a set in conjunction with a power unit

This unit is used in conjunction with a power unit and a UHF TV aerial to; Boost TV signal in poor reception areas - which might be caused by... Long distance from the transmitter Interference caused by an obstruction e.g. (hill) A low gain TV aerial is being used

The filter screens inputs of <470 MHz to prevent interference from CB, private mobile radio, Tetra etc..

Can achieve a 13dB gain which can transform a hazy picture into a clear picture

The fact it is screened means it can boost the signal without dragging in excess interference - from CB, private mobile radio, Tetra etc

Reliable robust unit Low cost unit

Can be used with power passing splitters to feed a number of rooms

Generally more effective than a using a distribution system at improving signal quality

Can be used in conjunction with a Power passing splitter to feed TV signal to several televisions

Can only handle UHF signal - not VHF Medium gain is not always enough and sometimes you will need to use a high gain unit (which also risks possibility of higher interference) for optimum results It a balancing act to select the correct masthead amplifier (if any at all)

If used incorrectly or if there is a large amount of background interference, a power unit and a masthead amplifier can actually make matters worse - particularly in a strong reception area
