Masthead Amplifier UHF High Gain Single Output

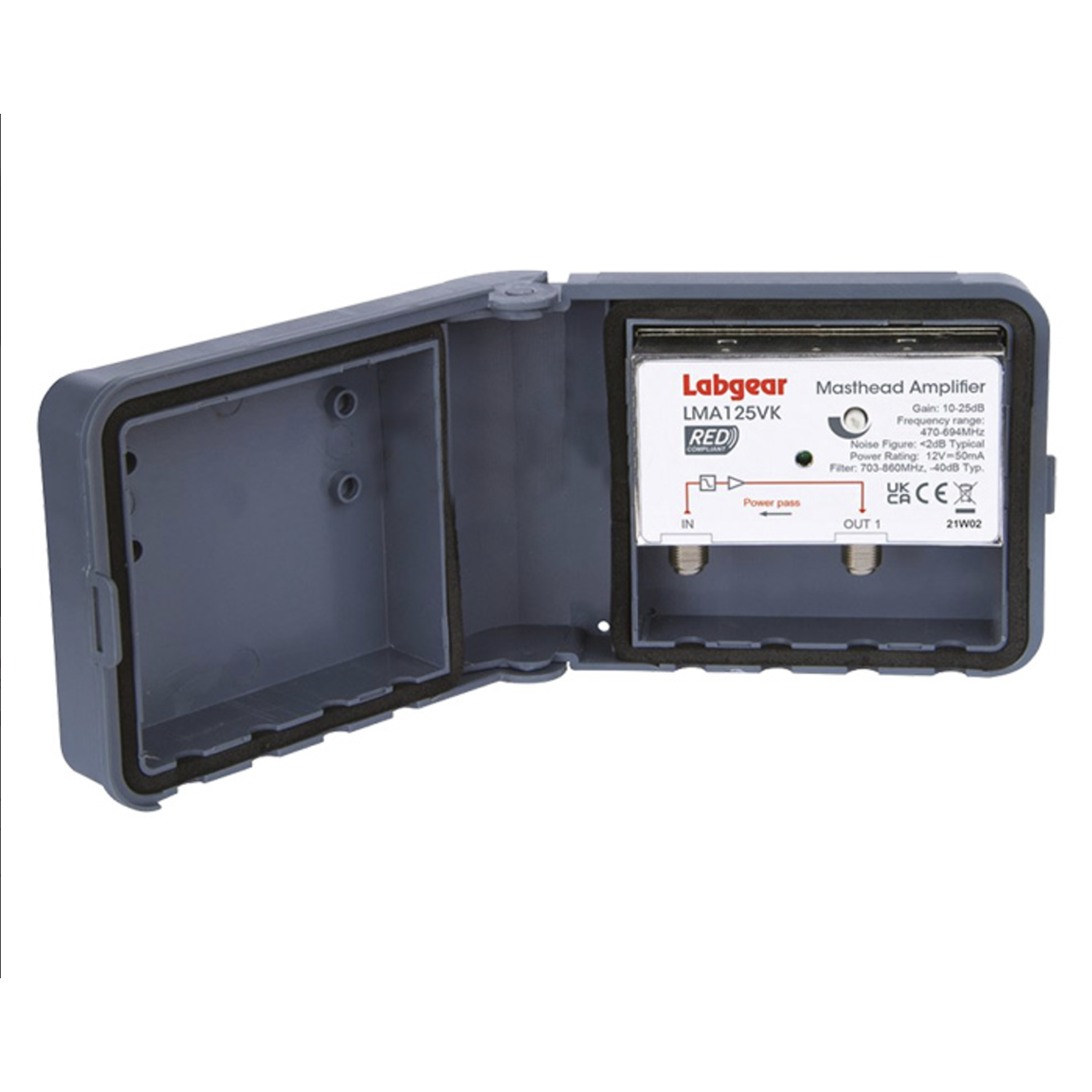

Labgear UHF Masthead High Gain Amplifier

UHF High Gain Masthead TV Amplifier

Gain: 10-25dB (Adjustable Gain)

Signal Range: 470-694MHz

DC Requirement: 12Vdc ~ 50mA

Inputs: 1

Outputs: 1

Indoor / Outdoor Use

Connectors: F-Type Connectors

Manufacturer: Labgear

Digital Compatible: Yes

Analogue Compatible: Yes

RED, EMC & LVD Compliant CC 8543703000 0.19kg Y

Note: Always used as a set in conjunction with a power unit

This unit is used in conjunction with a power unit and a UHF TV aerial to boost TV signal in poor reception areas

A weak TV signal might be caused by factors such as... Long distance from the transmitter Interference caused by an obstruction eg.. (Hills, Mountains etc..) A low gain TV aerial is being used

The filter screens inputs of <470MHz to prevent interference from CB, private mobile radio, tetra etc..

Can achieve a 25dB gain which can transform a hazy picture into a clear picture.

The fact it is screened means it can boost the signal without dragging in excess interference

Reliable robust unit Low cost unit

Generally more effective than a using a distribution system at improving signal quality

Can be used in conjunction with a power passing splitter to feed TV signal to several TVs

Can only handle UHF signal, not VHF

High gain can be a problem if there is a lot of background interference (Sometimes the medium gain is better)

If used incorrectly or if there is a large amount of background interference, a power unit and a masthead amplifier can actually make matters worse, particularly in a strong reception area
