DAHUA LR ETHERNET OVER COAX TRANSMITTER

Dahua Single-Port Long Reach Ethernet over Coax Extender (transmitter) LR1002-1ET...
In Stock
€110,00
€110,00
DAHUA LR ETHERNET OVER COAX TRANSMITTER

DAHUA LR ETHERNET OVER COAX TRANSMITTER

€110,00

DAHUA LR ETHERNET OVER COAX TRANSMITTER

€110,00

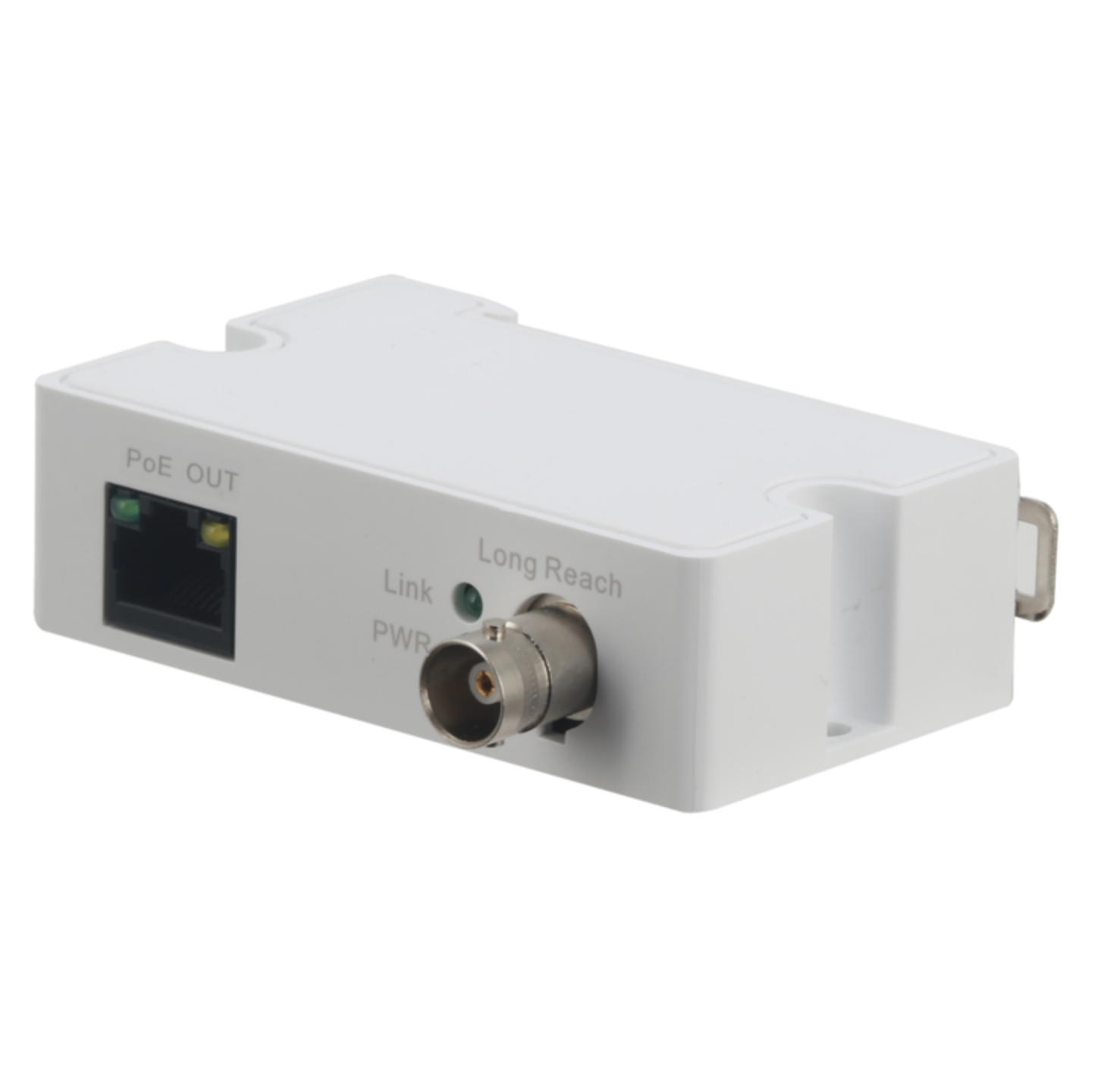

Dahua Single-Port Long Reach Ethernet over Coax Extender (transmitter)

LR1002-1ET

The product is divided into transmitter (LR1002-1ET) and receiver (LR1002-1EC).

It is designed to work as a type of converter from RJ45 to BNC port, which supports long range power supply transmission via coaxial cable.

It provides one BNC coaxial port and one RJ45 port.

The product is equipped with two transmission modes which are 100Mbps and 10Mbps.

It can be modified according to the transmission distance.

Supports IEEE802.3, IEEE802.3u standards

Supports IEEE802.3af and IEEE802.3at power supply standards

Port: 1*RJ45 10/100Mbps, 1*BNC

Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps

Supports MDI/MDIX self-adaption

Supports long range power supply transmission via coaxial cable

  • 12089-12090-LR1002-1ETLR1002-1EC_Datasheet_20170831_c15dd982-58a7-47e7-967b-f4b5ad37b0cd.pdf Download
